19mm Width 5300rpm Maximum Rotational Speed Double Sealed Steel Cage Single Row Metric 4860lbf Static Load Capacity 45mm ID FAG 6209-2RSR-C3 Deep Groove Ball Bearing C3 Clearance 85mm OD 7460lbf Dynamic Load Capacity Schaeffler Technologies Co.

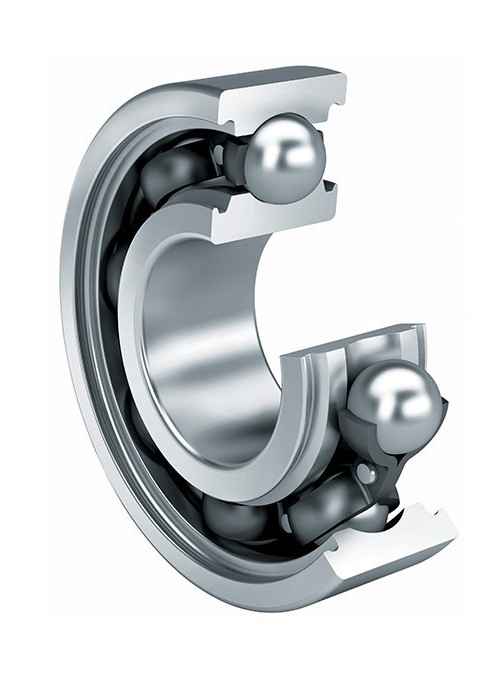

FAG 6209-2RSR-C3 Deep Groove Ball Bearing, Single Row, Double Sealed, Steel Cage, C3 Clearance, Metric, 45mm ID, 85mm OD, 19mm Width, 5300rpm Maximum Rotational Speed, 4860lbf Static Load Capacity, 7460lbf Dynamic Load Capacity: Industrial & Scientific. FAG 6209-2RSR-C3 Deep Groove Ball Bearing, Single Row, Double Sealed, Steel Cage, C3 Clearance, Metric, 45mm ID, 85mm OD, 19mm Width, 5300rpm Maximum Rotational Speed, 4860lbf Static Load Capacity, 7460lbf Dynamic Load Capacity: Industrial & Scientific. This FAG Light 600 Series single row deep groove ball bearing with a sheet steel cage supports radial loads and axial loads in both directions. It is also suitable for high speed applications. This bearing has a C radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than the standard CN (normal) clearance. It allows for thermal expansion as the bearing supports radial loads and its balls, operating in the deep raceway geometry, reduce rotational friction. This bearing is rated "Light," making it applicable for average radial loads and light axial loads where space is tight and shaft diameters are relatively large. It can be used to a maximum operating temperature of 0 degrees C/48 degrees F. The inner and outer rings and balls are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has a rubber seal on either side that is fastened to the outside ring, and extends over the rolling elements and to make contact with the inside ring, keeping out contaminants such as dirt and grime. The seals also hold lubricant applied during manufacturing that will last the lifetime of the bearing. This deep groove ball bearing is for use in various applications such as transmissions, motors, pumps, bicycles, and inline skates, among others.。 Specifications Met Main bearing dimensions DIN 65- Basic dynamic load ratings DIN ISO 8 C radial internal clearance DIN 60-4 (ISO 5 75) Shaft and housing tolerances ISO 86 Through-hardening steel for inner and outer rings ISO 68-7 Steel strip for cage EN 09, SAE J40 Load carrying capacity and life DIN ISO 8 Appendix System for creating part numbers for rolling bearings DIN 6- 。 Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.。 FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 88, FAG is based in Schweinfurt, Germany.。 。 。 。 。
